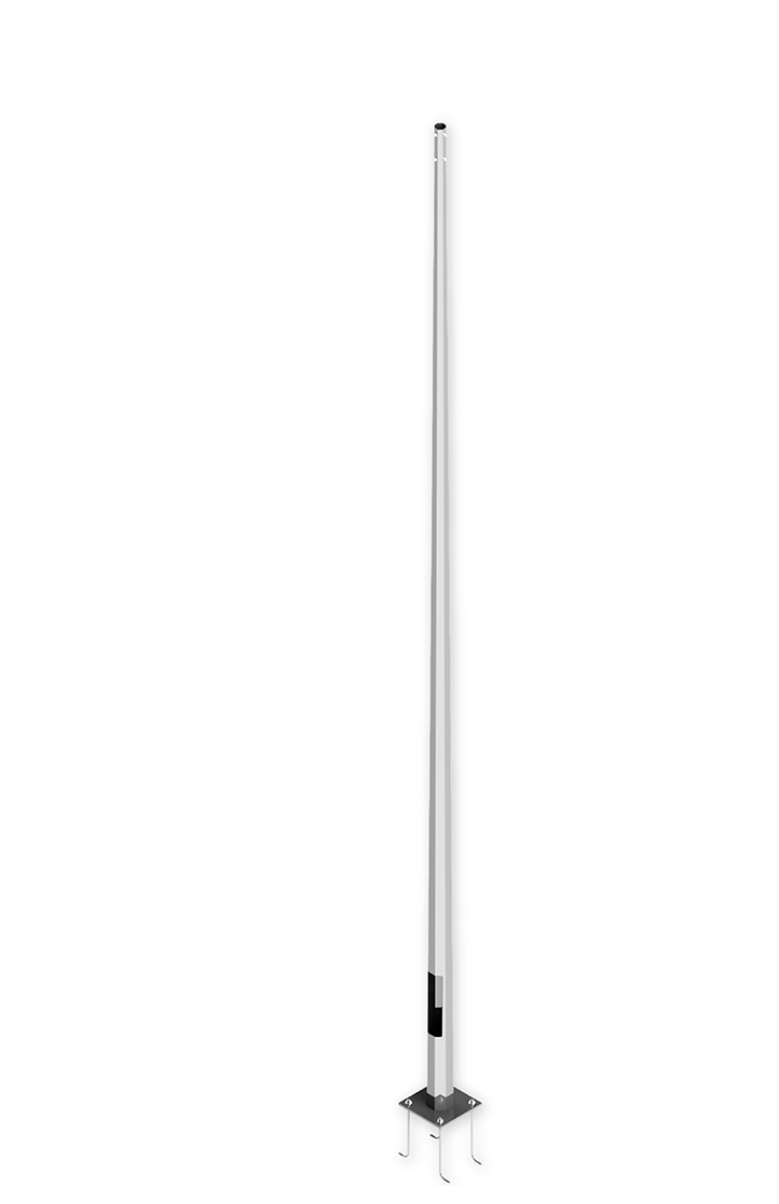

Conical Street Light Pole | Comtech Steel Industries Steel Manufacturing UAE

Conical Lighting Poles

  • Our tapered conical poles, made from high-quality galvanized steel, offer durable, corrosion-resistant lighting solutions for streets, highways, and urban projects.

    • Height: 3 m – 20 m

    • Wall Thickness: 3 mm – 5 mm

    • Material: High-quality steel

    • Pole Shape: Conical

    • Shaft Sections: 1 or 2

    • Base Plate Thickness: 12 mm – 50 mm

    • Base Plate Dimensions: 300 mm – 500 mm

    • Customization: Fully customizable

    • Galvanized

    • Customizable

    • Mid-Hinge pole available

  • Technical Standards & Features:

    • Design Standard: AASHTO

    • Wind Resistance: Up to 160 km/hr with 1.14 gust factor

    • Material Standards: BS 4449:OES, BS EN 10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization

    • Standard: EN 1461 (Hot-Dip Galvanizing)

    • Surface Treatment: Zinc coating for enhanced durability

    • Expected Service Life: 25–50 years

    • Warranty: Provided

    • Bracket

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    All Accessories are customizable

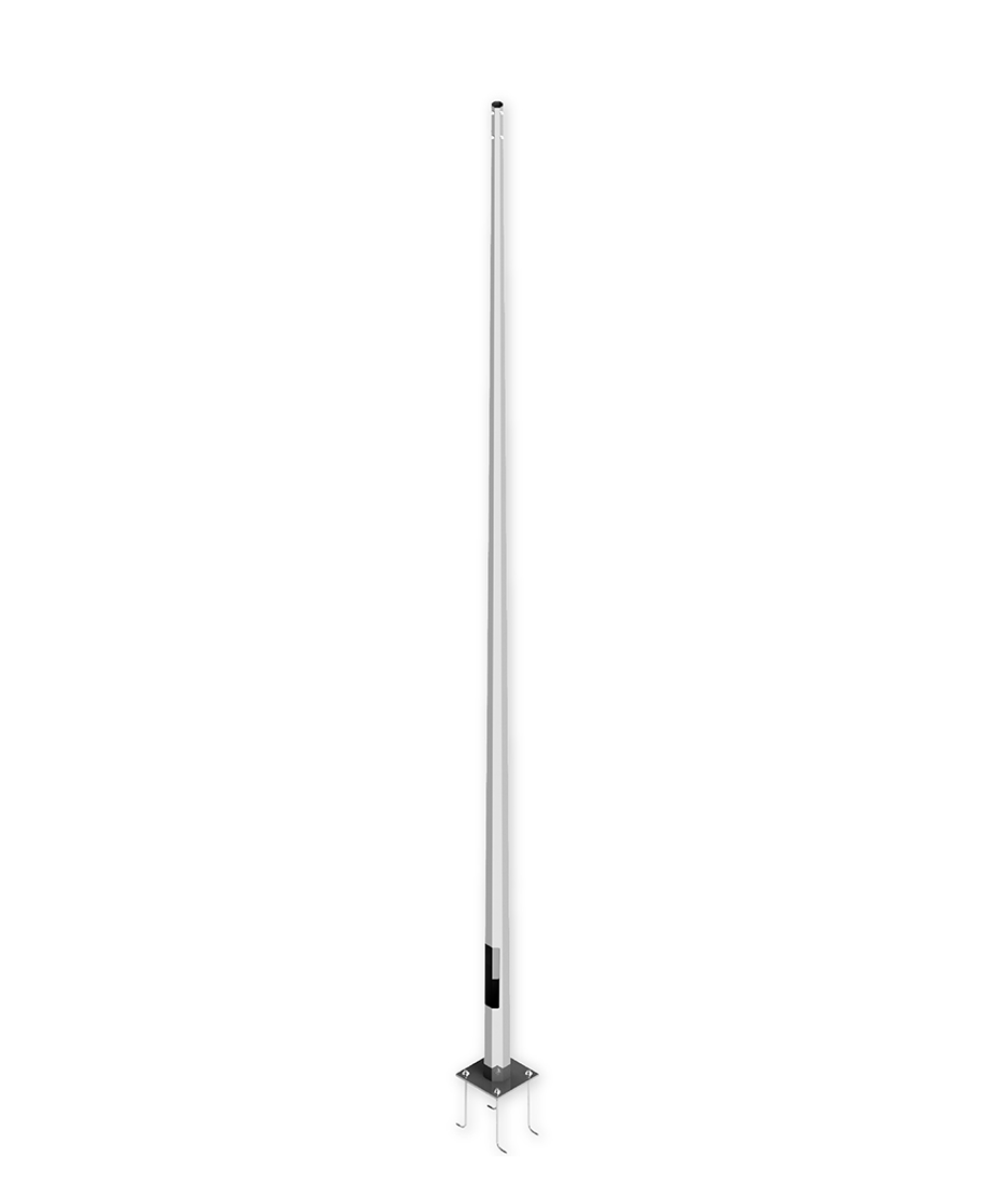

Octagonal Street Light pole | Comtech Steel Industries Steel Manufacturing UAE

Octagonal Lighting Poles

  • Steel tapered octagonal poles (3–20m) for street lighting, sports fields, parking lots, and industrial projects. Reliable general-purpose lighting solution.

  • Item descriptionSpecifications – Tapered Conical Street Lighting Poles

    • Height Range: Available from 3 meters up to 20 meters

    • Pole Thickness: 3 mm to 5 mm

    • Material: High-quality steel construction

    • Pole Shape: Octagonal design

    • Shaft Sections: Single or double-section options

    • Base Plate Thickness: Offered in 12 mm, 16 mm, 20 mm, 25 mm, 30 mm, 40 mm, and 50 mm sizes

    • Base Plate Dimensions: 300-500mm

    • Galvanized

    • Customizable

    • Mid-Hinge available

    • Standard: ASSHTO

    • Wind Speed: 160 km/hr, Gust factor
      1.14

    • Surface treatment: Zinc Coating

    • Steel Standard: BS 4449:OES, BS EN
      10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization Standard: EN 1461

    • Life Span: 25-50 Years

    • Bracket

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    All Accessories are customizable

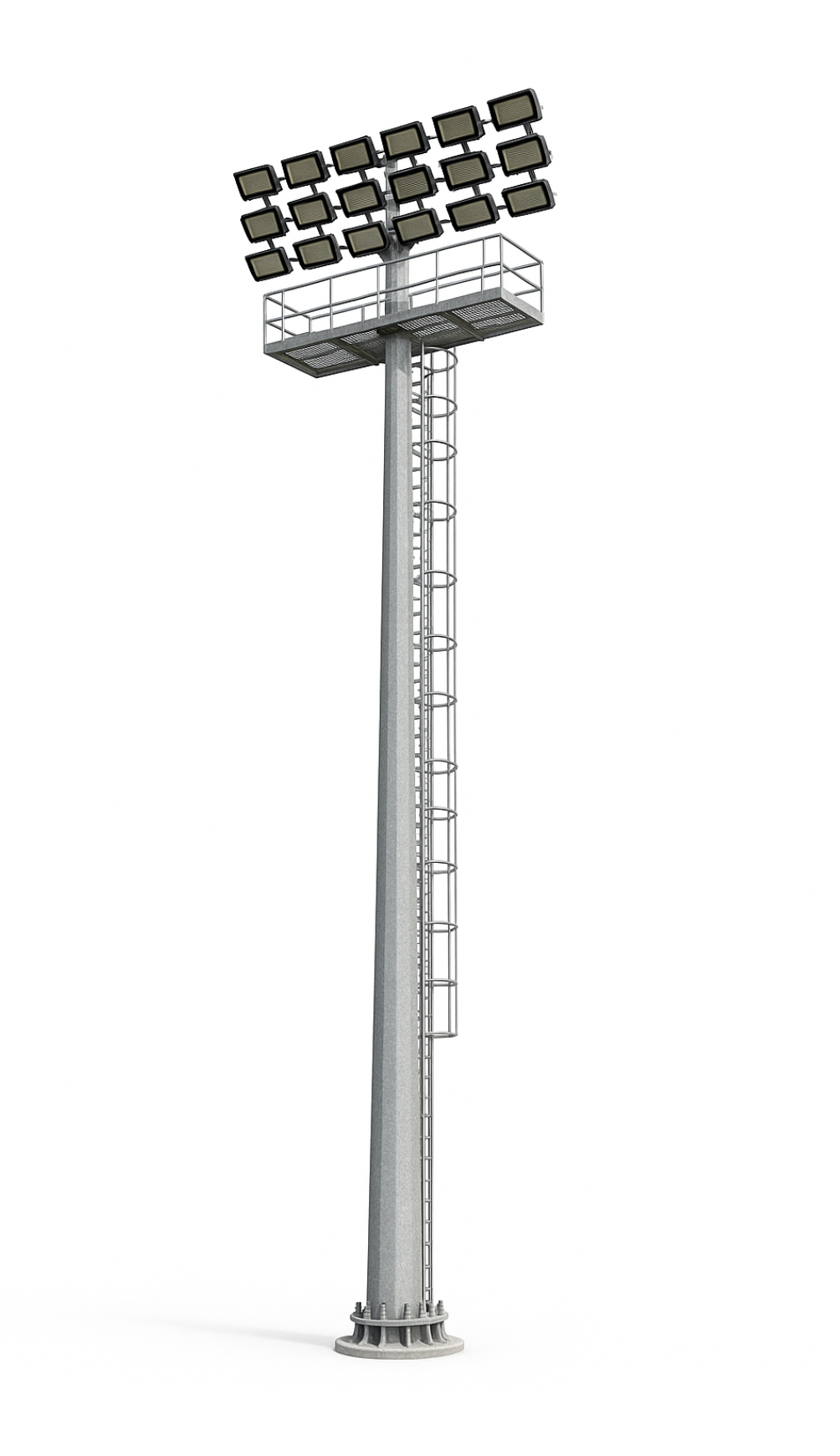

High Mast Pole | Comtech Steel Industries Steel Manufacturing UAE

High Mast Lighting Poles

  • High mast lighting poles deliver efficient, large-area illumination with minimal obstruction. CSI is among the top high mast pole manufacturers in UAE

    • Height Range: 3m to 50m

    • Wall Thickness: 3mm to 10mm

    • Material: High-strength steel

    • Pole Shape: Polygonal design

    • Shaft Sections: Available in 1, 2, 3, 4, or 5 sections

    • Base Plate: Dimensions and thickness fully customizable

    • Galvanized

    • Customizable

    • Design Standard: AASHTO

    • Wind Resistance: Up to 160 km/hr with 1.14 gust factor

    • Material Standards: BS 4449:OES, BS EN 10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization Standard: EN 1461 (Hot-Dip Galvanizing)

    • Protective Coating: Zinc coating for enhanced durability

    • Expected Service Life: 25–50 years

    • Warranty: Provided

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    • Lowering & Raising Machine

    • Service Ladder

    • Light Platforms

      All accessories are customizable upon request.

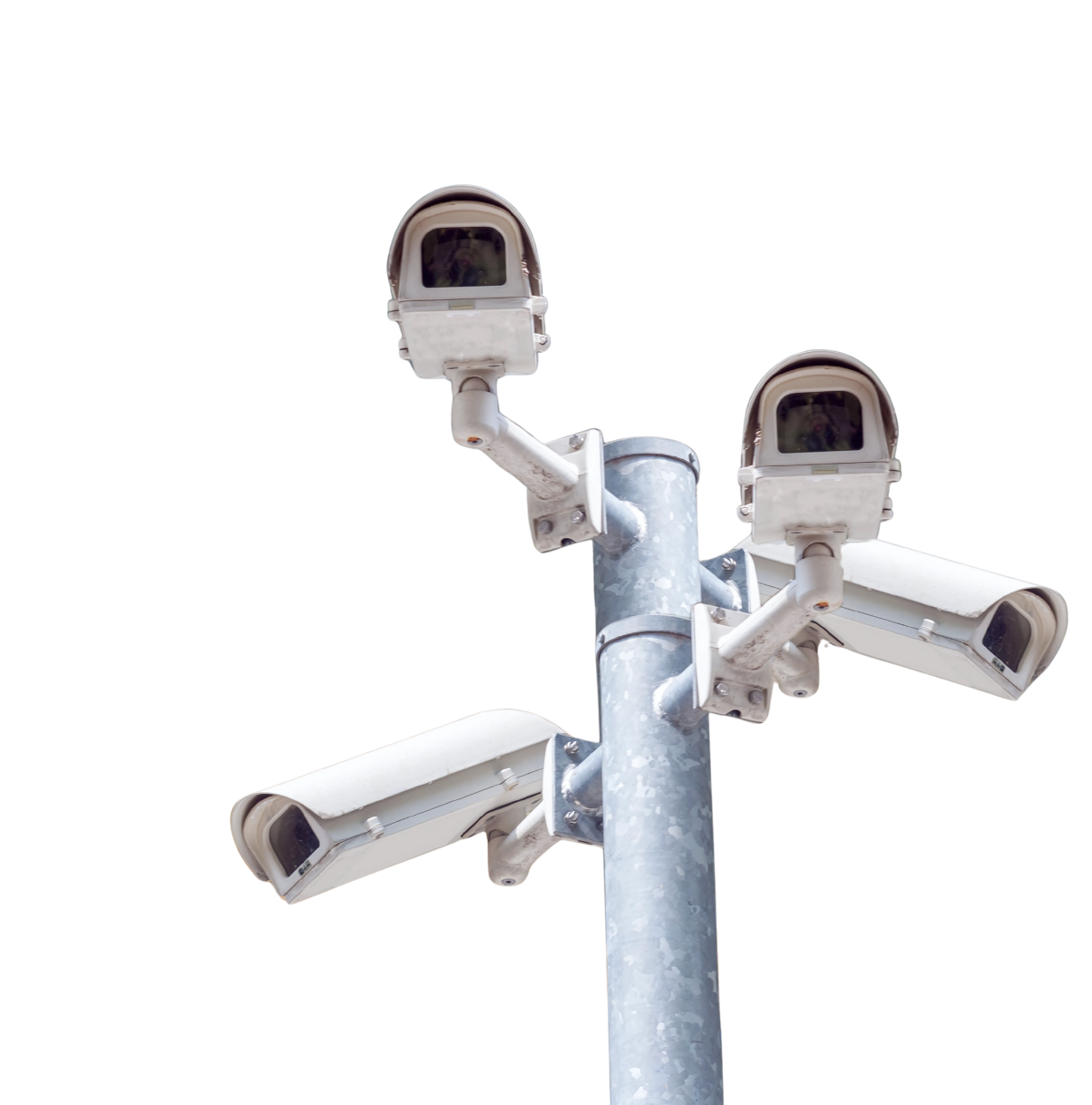

Camera Pole | Comtech Steel Industries Steel Manufacturing UAE

CCTV Security Camera Poles

  • Our security camera poles, reaching up to 20 m, offer stable and reliable surveillance for commercial, industrial, and public spaces. The mid-hinge design allows safe and easy lowering for maintenance, eliminating the need for expensive tools

    • Height: 3 m – 50 m

    • Wall Thickness: 3 mm – 10 mm

    • Material: High-quality steel

    • Pole Shape: Polygonal

    • Shaft Sections: 1 to 5 sections

    • Galvanized

    • Customizable

    • Design Standard: AASHTO

    • Wind Resistance: Up to 160 km/hr with 1.14 gust factor

    • Material Standards: BS 4449:OES, BS EN 10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization Standard: EN 1461 (Hot-dip galvanized)

    • Surface Treatment: Zinc coating for corrosion protection

    • Expected Service Life: 25–50 years

    • Warranty: Provided

    • Bracket

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    • Lowering & Raising Machine

    • Service Ladder

    • Light Platforms

    All accessories are customizable upon request.

  • Our durable, heat-treated aluminum video camera poles provide strong, wind-resistant support for surveillance systems. Customizable to your needs, each pole features an adjustable top, handhole with cover, secure base with bolts and nuts, and comes with an installation guide. Available in bronze, black, gray, green, or white, these poles combine functionality with a professional finish for any security setup.

Tubular Street Light Pole | Comtech Steel Industries Steel Manufacturing UAE

Tubular Lighting Poles

  • Tubular poles, up to 12 m, provide versatile solutions for sports fields, streets, and industrial sites. Durable and reliable, they are ideal as general-purpose poles.

    • Height: 3 m – 20 m

    • Wall Thickness: 3 mm – 5 mm

    • Material: Steel

    • Shape: Cylindrical

    • Shaft Sections: 1–2

    • Base Plate: 12 mm – 50 mm thick, 300–500 mm dimensions

    • Galvanized

    • Customizable

    • Design Standard: AASHTO

    • Wind Resistance: Up to 160 km/hr, gust factor 1.14

    • Material Standards: BS 4449:OES, BS EN 10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization Standard: EN 1461 (hot-dip galvanized)

    • Surface Treatment: Zinc coating

    • Expected Life Span: 25–50 years

    • Warranty: Provided

    • Bracket

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    All accessories are fully customizable upon request.

Flag Banner Pole | Comtech Steel Industries Steel Manufacturing UAE

Banner Poles

  • CSI Banner Poles are durable steel poles designed to display banners and signage in streets, commercial areas, and public spaces. Available in various heights and customizable configurations, these poles provide strong support, weather resistance, and a professional finish for urban and industrial applications.

    • Height: 3 m – 20 m

    • Wall Thickness: 3 mm – 5 mm

    • Material: Steel

    • Shape: Conical

    • Shaft Sections: 1–2

    • Base Plate Thickness: 12 mm – 50 mm

    • Base Plate Dimensions: 300–500 mm

    • Galvanized

    • Customizable

    • Design Standard: AASHTO

    • Wind Resistance: Up to 160 km/hr, gust factor 1.14

    • Material Standards: BS 4449:OES, BS EN 10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization Standard: EN 1461 (hot-dip galvanized)

    • Surface Treatment: Zinc coating

    • Expected Life Span: 25–50 years

    • Warranty: Provided

    • Bracket

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    All accessories are fully customizable upon request.

Solar Street Light Pole | Comtech Steel Industries Steel Manufacturing UAE

Solar Lighting Poles

  • Our Solar Energy Light Poles are durable and efficient, ideal for outdoor lighting in streets, homes, and public spaces. Reliable, strong, and low-maintenance, they are perfect for sustainable solar-powered illumination.

    • Height: 2.5 m – 12 m

    • Wall Thickness: 3 mm – 5 mm

    • Material: Steel

    • Pole Shapes: Tubular, Polygonal, Conical, or Octagonal

    • Shaft Sections: 1–2

    • Base Plate: Fully customizable thickness and dimensions.

    • Galvanized

    • Customizable

    • Design Standard: AASHTO

    • Wind Resistance: Up to 160 km/hr, gust factor 1.14

    • Material Standards: BS 4449:OES, BS EN 10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization Standard: EN 1461 (hot-dip galvanized)

    • Surface Treatment: Zinc coating

    • Expected Life Span: 25–50 years

    • Warranty: Provided

  • Accessories:

    • Bracket

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    All accessories are fully customizable upon request.

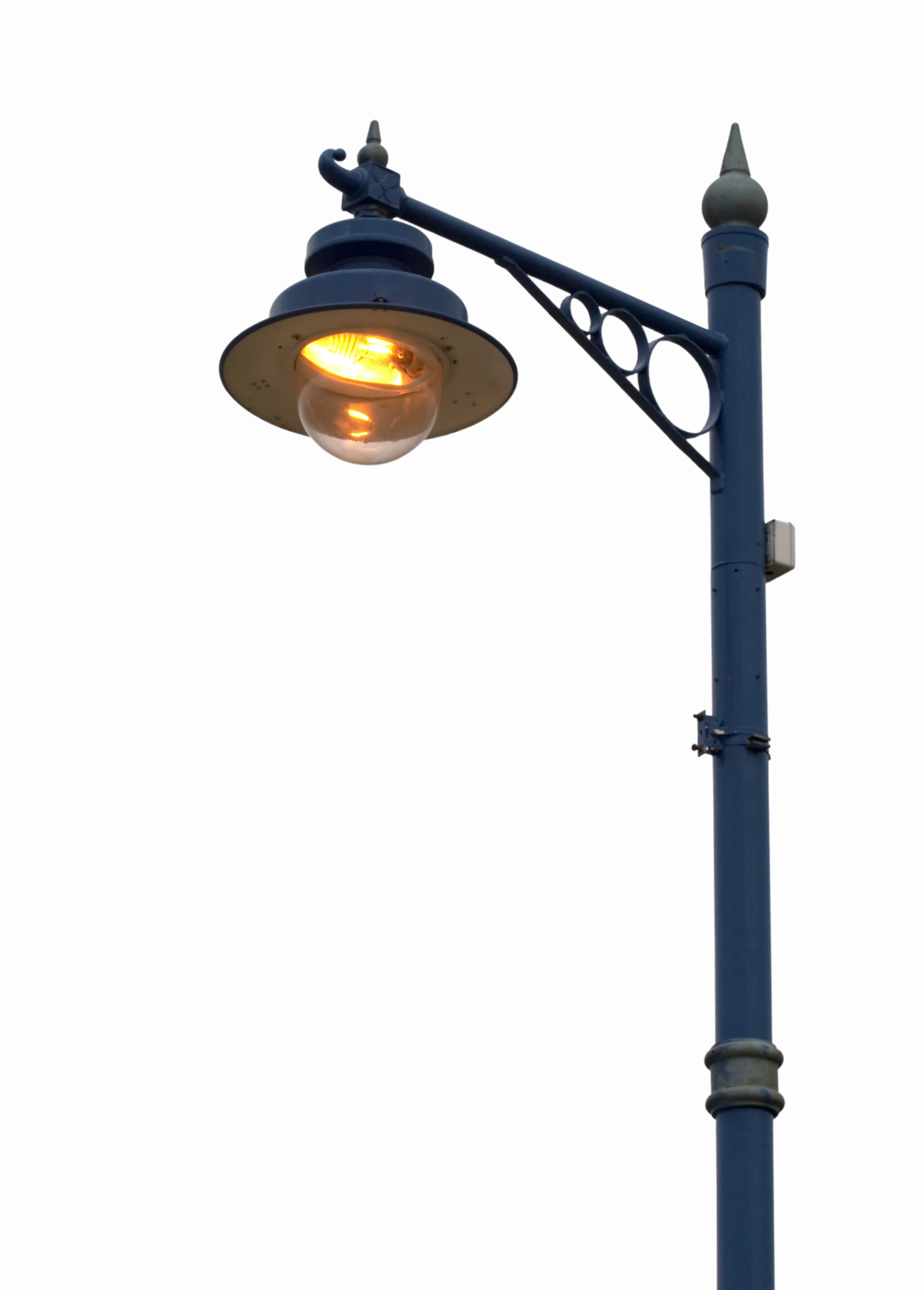

Decorative Street light Pole | Comtech Steel Industries Steel Manufacturing UAE

Decorative Lighting Poles

  • CSI Decorative Lighting Poles combine style and durability to enhance streets, parks, and public spaces. Made from high-quality steel with customizable designs and finishes, these poles provide reliable outdoor lighting while adding an elegant aesthetic to urban and commercial areas.

    • Height: 2.5 m – 12 m

    • Wall Thickness: 3 mm – 5 mm

    • Material: Steel

    • Pole Shapes: Tubular, Polygonal, Conical, or OctagonalHeight: 2 m – 12 m

    • Wall Thickness: 3 mm – 5 mm

    • Material: Steel

    • Shape: Tubular Step

    • Shaft Sections: 1–2

    • Base Plate Thickness: 12 mm – 50 mm

    • Base Plate Dimensions: 300–500 mm

    • Galvanized

    • Customization: RTA standard for UAE

    • Design Standard: AASHTO

    • Wind Resistance: Up to 160 km/hr, gust factor 1.14

    • Material Standards: BS 4449:OES, BS EN 10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization Standard: EN 1461 (hot-dip galvanized)

    • Surface Treatment: Zinc coating

    • Expected Life Span: 25–50 years

    • Warranty: Provided

  • Accessories:

    • Bracket

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    All accessories are fully customizable upon request.

  • CSI Decorative Lighting Poles are designed to meet UAE RTA standards for approved decorative poles, ensuring safety, quality, and compliance for streets, parks, and public spaces. For international projects, poles can be fully customized to meet local standards and requirements.

A telescopic metal ladder extended at an angle with a black attachment at the top. The background is plain white.

Mid-Hinged Lighting Poles

  • CSI Mid-Hinged Lighting Poles are engineered for easy maintenance and safe operation. The mid-hinge design allows the pole to be lowered to ground level without special tools, making it ideal for easy maintenance. Durable and wind-resistant, these poles provide reliable performance for long-term outdoor use.

    • Height: 3 m – 50 m

    • Wall Thickness: 3 mm – 10 mm

    • Material: Steel

    • Pole Shapes: Octagonal or Conical

    • Shaft Sections: 1–2

    • Base Plate Thickness: 12 mm – 50 mm

    • Base Plate Dimensions: 300–500 mm

    • Galvanized

    • Customizable

    • Design Standard: AASHTO

    • Wind Resistance: Up to 160 km/hr, gust factor 1.14

    • Material Standards: BS 4449:OES, BS EN 10002:PT.1, BS 3692:2001

    • Welding Standard: AWS D1.1

    • Galvanization Standard: EN 1461 (hot-dip galvanized)

    • Surface Treatment: Zinc coating

    • Expected Life Span: 25–50 years

    • Warranty: Provided

    • Bracket

    • Cut Out Box

    • Anchor Bolt

    • Mounting Plate

    • Base Plate Cover

    All accessories are fully customizable upon request.
